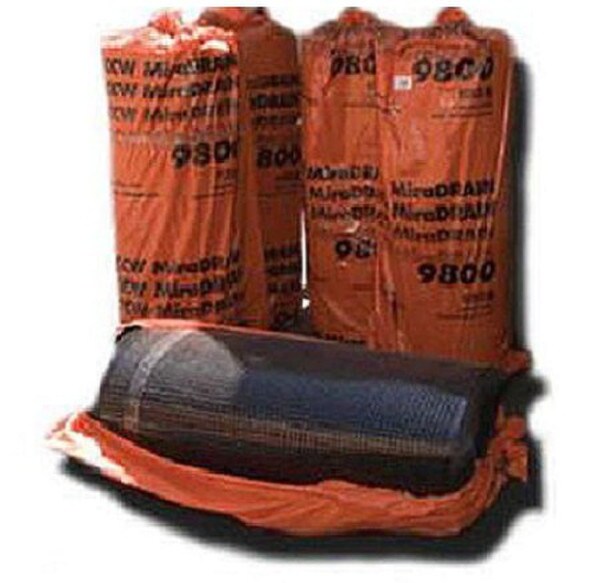

MIRADRAIN 9800 4' X 50' ROLL

CCW MiraDRAIN 9800 is a high-strength drainage composite made up of a heavy-weight nonwoven filter fabric that is bonded to the individual dimples of a molded polypropylene core to minimize fabric intrusion into the flow channels caused by backfill pressure. The fabric provides unmatched filtration, preventing small particles of soil from clogging the drainage channel while allowing subgrade moisture to pass freely. MiraDRAIN 9800 is designed for use in high-flow, high-compressive-strength, horizontal and vertical drainage applications where maximum filtration is required for subsurface drainage, and can also serve as a protection course over CCW waterproofing membranes. The flat side of MiraDRAIN 9800 fits snugly against wall or deck surfaces, making it ideal for planter, green roof, and foundation wall applications.

Features and Benefits

• Relieves hydrostatic pressure buildup against subterranean surfaces.
• Consistent, multi-directional core configuration provides a uniform flow path for water to escape
• High-flow drainage capacity - up to three times the flow capacity of aggregate or sand
• No-clogging drainage performance
• High-compressive-strength system withstands installation and in-situ earth stresses
• Enhances waterproofing system by channeling water away and providing a secondary water retention layer
• Cost-saving, lightweight, easy-to-install panels eliminate the need for aggregate
